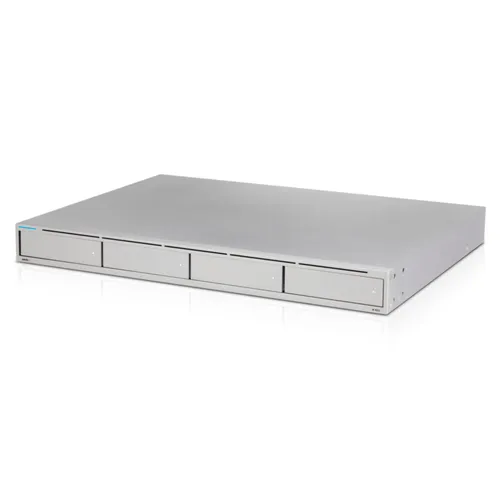

Ubiquiti UniFi Network Video Recorder UNVR-EU ohne Festplatten

Network Video Recorder
SKU: UNVR-EU

The Network Video Recorder (UNVR) is a business-grade network video recorder that provides data redundancy and long-term storage capabilities (up to 30 days of storage for 15 4K cameras or 50 1080p cameras).

The UNVR is a UniFi OS Console that runs the pre-installed UniFi Protect application and has spacious storage for up to 4 compatible 2.5” or 3.5" HDDs. The powerful, easy-to-use UNVR can be deployed in minutes and support systems with up to 50 cameras. Combining the best features of Cloud and onsite surveillance systems, UniFi Protect gives you centralized, local, low-latency access to all of your live camera feeds and recordings, as well as remote access from anywhere in the world via unifi.ui.com and the Protect mobile app. The UNVR also offers sophisticated data protection and continuity by automatically applying RAID 1 or 5 configuration based on the number of HDDs installed.

Features:

• (4) 2.5"/3.5" HDD bays
• (1) 10G SFP+ port
• (1) GbE RJ45 port
• 1U-sized, rack-mountable console (kit included)
• Pre-installed UniFi Protect application
• Automated RAID 1 or RAID 5 HDD configuration
• Can be connected to the USP RPS (sold separately) for enhanced power supply failover protection
• Allows you to easily scale your deployment by connecting additional UniFi devices

Simply scalable building video security
The platform designed for multi-camera deployments

• 4x HDD Bay
  2.5”/3.5” Drive Bay
• 10 Gbps SFP+
  10 Gbps SFP+ Port
• 1 Gbps RJ45
  Gigabit RJ45 Port
• Plug & Play System
  UniFi Protect System with NVR
• RAID 1 or RAID 5
  Automated secure RAID 1 or RAID 5 configuration
• Redundant Power
  Redundant Power Support

Store your footage for 30 days
Enterprise network video recorder, can provide up to 30 days of 4K video storage for 15 cameras or Full HD video storage for 50 cameras

Redundant power support
Proprietary redundant power system designed to protect from sudden power supply module failure. Use USP-RPS* or USW-Mission-Critical**
* Sold separately ** Coming soon

Automized Secure RAID1/5 Configuration
The UNVR unifies enterprise-class data protection and scalable storage with simple Plug and Play integration using the intuitive UniFi Protect software

Storage for 38 days
Minimum 26 days of continuous motion recording

Know more about your network than ever before
Keep an Eye on Your Property From Any Device From Anywhere

Mechanical

• Dimensions 442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7")
• Weight Without Rackmount Brackets: 5.11 kg (11.27 lb) / With Rackmount Brackets: 5.20 kg (11.46 lb)
• Enclosure Material SGCC Steel

Hardware

• Processor Quad-Core ARM® Cortex®-A57 at 1.7 GHz
• System Memory 4 GB
• On-Board Flash Storage 8 GB
• Max. Power Consumption 100W
• Max. Power Budget for Drives 75W
• Power Method (1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz / (1) USP-RPS DC input, 11.5VDC, 10.43A
• Power Supply AC/DC, Internal, 120W
• Networking Interfaces (1) 10/100/1000 Mbps RJ45 Ethernet / (1) 1/10 Gbps SFP+ Ethernet
• Management Interface Ethernet In-Band Management
• ESD/EMP Protection Air: ± 12kV, Contact: ± 8kV
• Operating Temperature -5 to 40° C (23 to 104° F)
• Operating Humidity 5 - 95% Noncondensing
• Certifications FCC, CE, IC

LEDs

• System
  - (1) Power, Blue/White
  - Flashing White: Bootup in Progress
  - Flashing Blue/White: Firmware Upgrading
  - Steady White: Factory Defaults, Awaiting Adoption
  - Steady Blue: Device is Adopted
• Ethernet Green: 1000 Mbps, Amber: 10/100 Mbps
• SFP+ White: 10 Gbps, Green: 1 Gbps
• HDD Amber: Disk Error, White: Disk Detected
• RPS Blue: Ready
